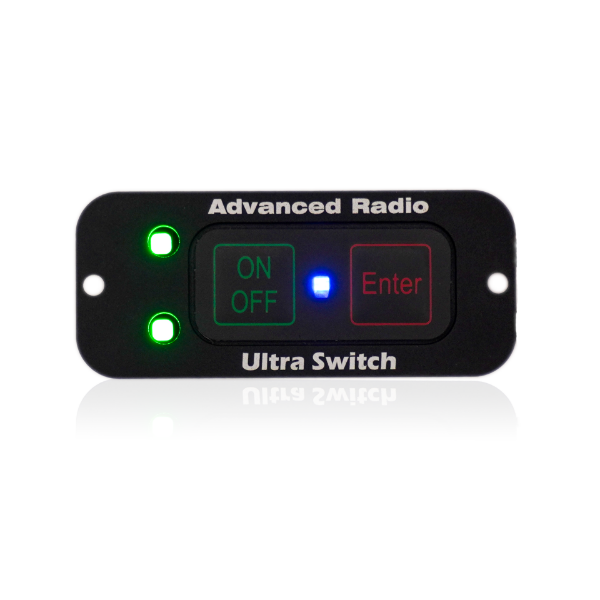

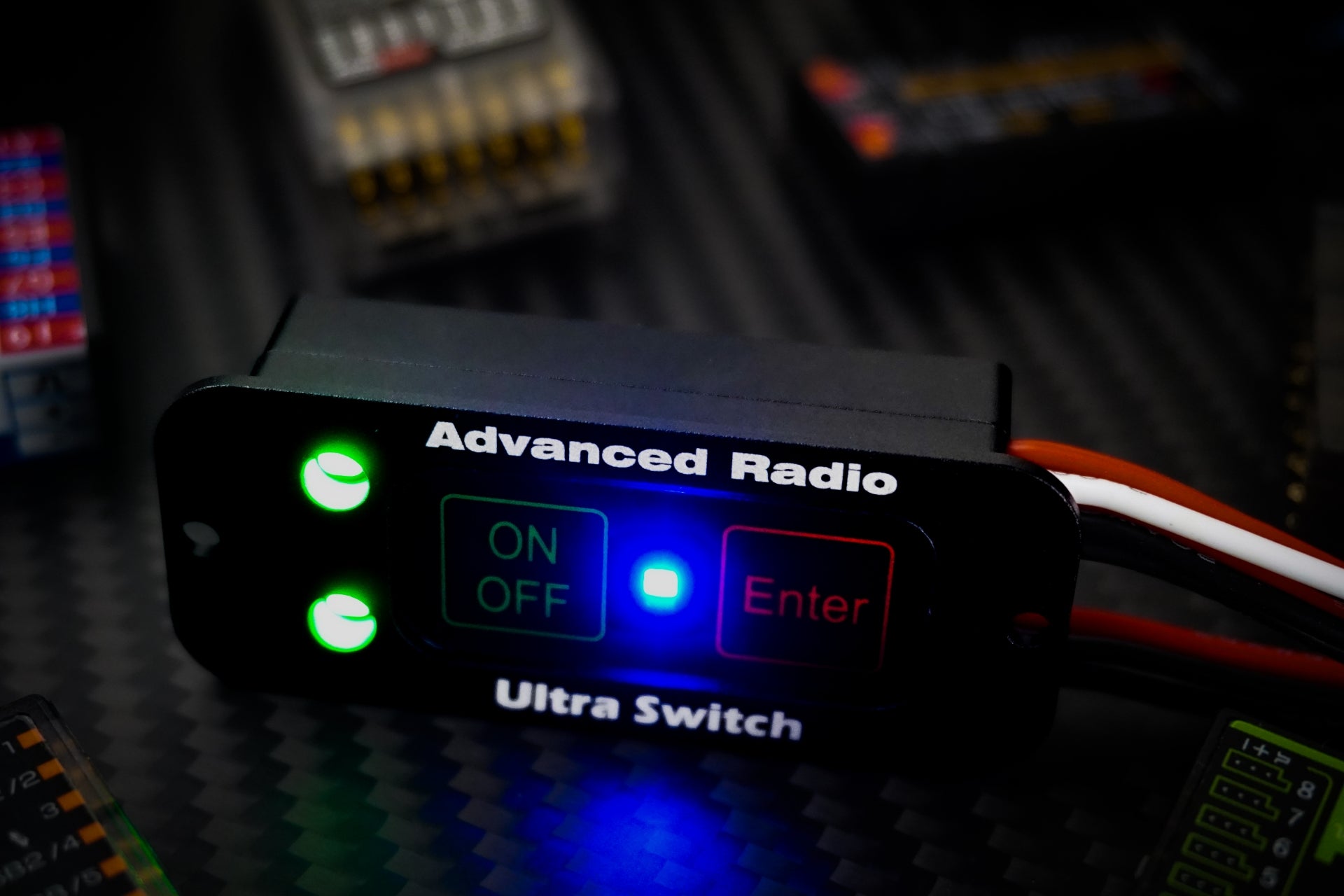

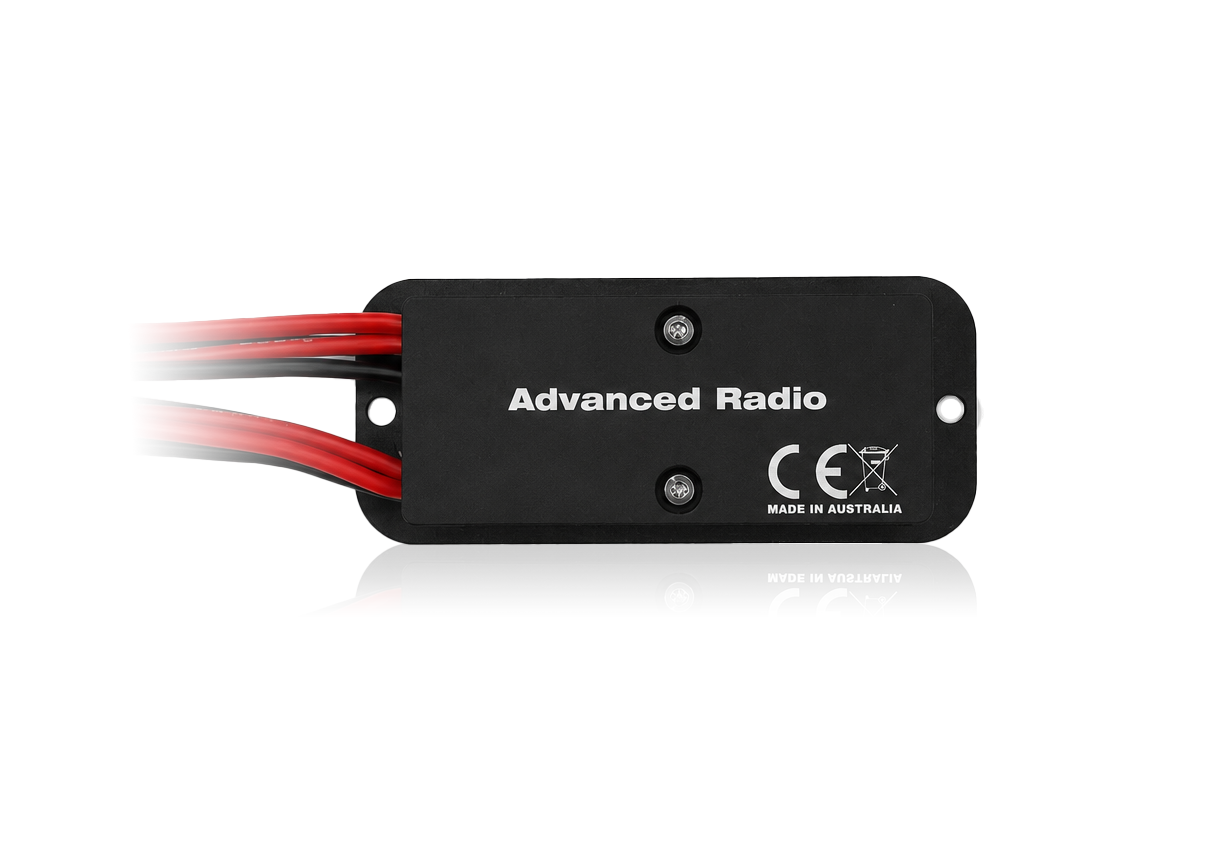

The Advanced Radio Ultra Switch is a lightweight, high-current power-management system designed for almost any RC aircraft. It combines two battery inputs, active load sharing, two regulated power outputs, and automatic telemetry detection in one ready-to-install unit.

If one battery fails or becomes disconnected, the second battery automatically takes the full load and keeps the radio system operating. Both outputs supply the same selected voltage, with options for 6.0 V, 6.6 V, 7.4 V, or unregulated 8.4 V operation.

Automatic telemetry discovery removes the need to manually select a protocol. Depending on the connected radio system, the pilot can monitor both battery voltages, current draw, and consumed capacity directly from the transmitter.

FEATURES

- Two battery inputs with active load sharing
- Automatic transfer of the full load to the remaining battery if one battery fails or disconnects
- Two power outputs regulated to the same selected voltage
- Selectable 6.0 V, 6.6 V, 7.4 V, or unregulated 8.4 V output
- Recommended for up to 10 A continuous current when operating unregulated
- Tested at 20 A for three minutes
- Tested at 40 A for 20-second bursts
- Automatic telemetry protocol discovery
- Monitoring of both battery voltages, current draw, and consumed capacity where supported
- Dual multicolour LEDs for battery monitoring
- Blue LED power-status indicator
- Deliberate two-button shutdown sequence to reduce accidental switch-off
- JR-style connectors fitted and ready to use
- Suitable for RC aircraft of all types
- Designed and made in Australia
