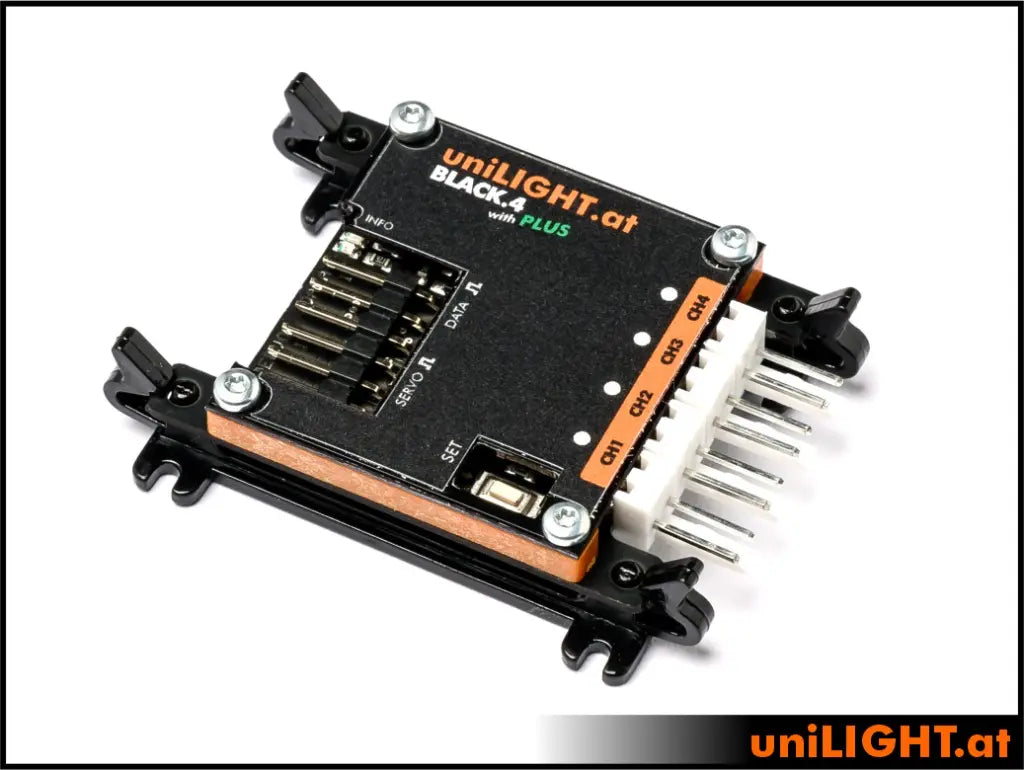

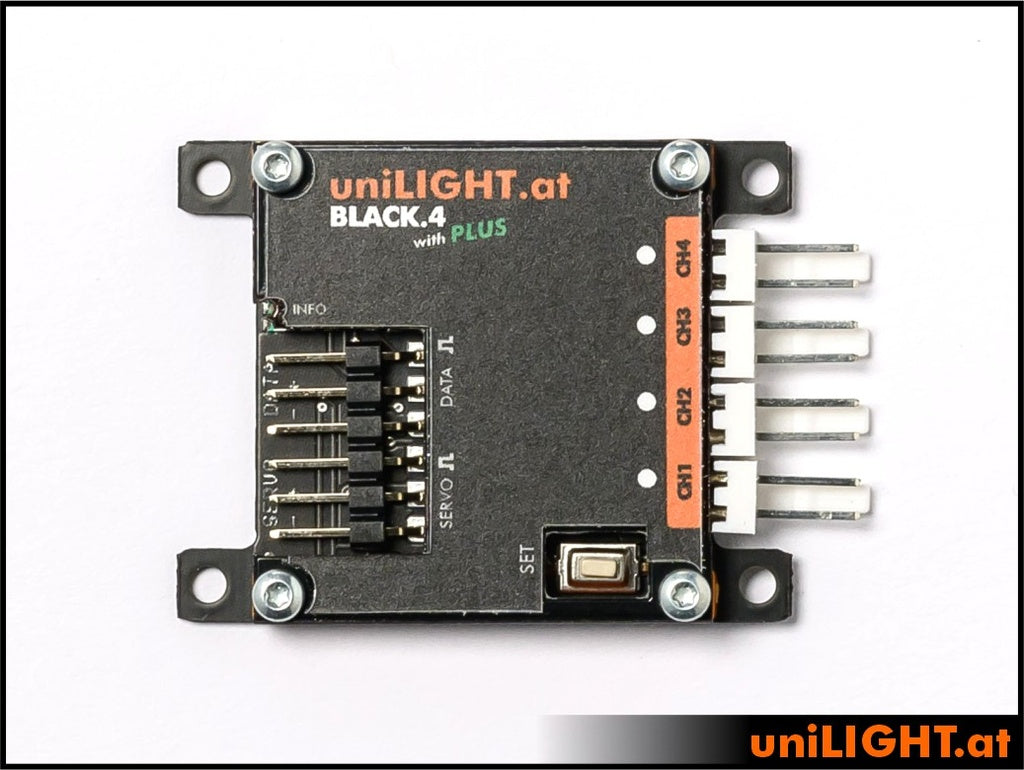

MODUL-B4PLUS
4-channel controller of the BLACK.4 PLUS series
The newest version of our absolute bestseller in the controller range - BLACK.4PLUS - all set and ready to impress! All-purpose controller module rose to fit most of the lighting functions and is now equipped with the uniLIGHTPLUS interface and programmable via the uniLIGHT.DESK, where alongside already known functions, a variety of additional settings can be configured. Its primary use remains for simple operation of most common lighting functions: strobes, navigation lights, beacon and landing spotlight, and ACL or BEACON light, or alternatively for switchable spotlights.
Highlights of the PLUS Serie
Configuration: classic operation and custom light patterns can be set
Software compatible with the uniLIGHTDESK
Dynamic: more beautiful, faster and sharper defined lighting effects with 32bit depth.
Safety: basic short-circuit protection of the outputs, undervoltage and temperature protection possible.
Master-Slave: no switch is necessary in the load circuit; it is only activated by the remote control.
Special functions: smooth transition switching, navigation+strobe sport function, power min/max limitation.
Servo output: programmable output for control of the folding mechanism or other servos.
Control side receiver 3.6-9.6V
approx. 8g without cable
Dimensions 50x35x6mm
Light signals 4 channels with 6A to 14V (>6A pulse)
Total load up to 10A duration (>10A pulse)
Galvanically isolated system
Operation also possible without RC signal
14+2 classic variable speed lighting scheme
2+1 Custom
Soft switching process programmable
Navigation with flash function programmable
Short circuit protection
Deep discharge protection
Reverse polarity protection
Servo output for operating pop-up headlights, switches or valves

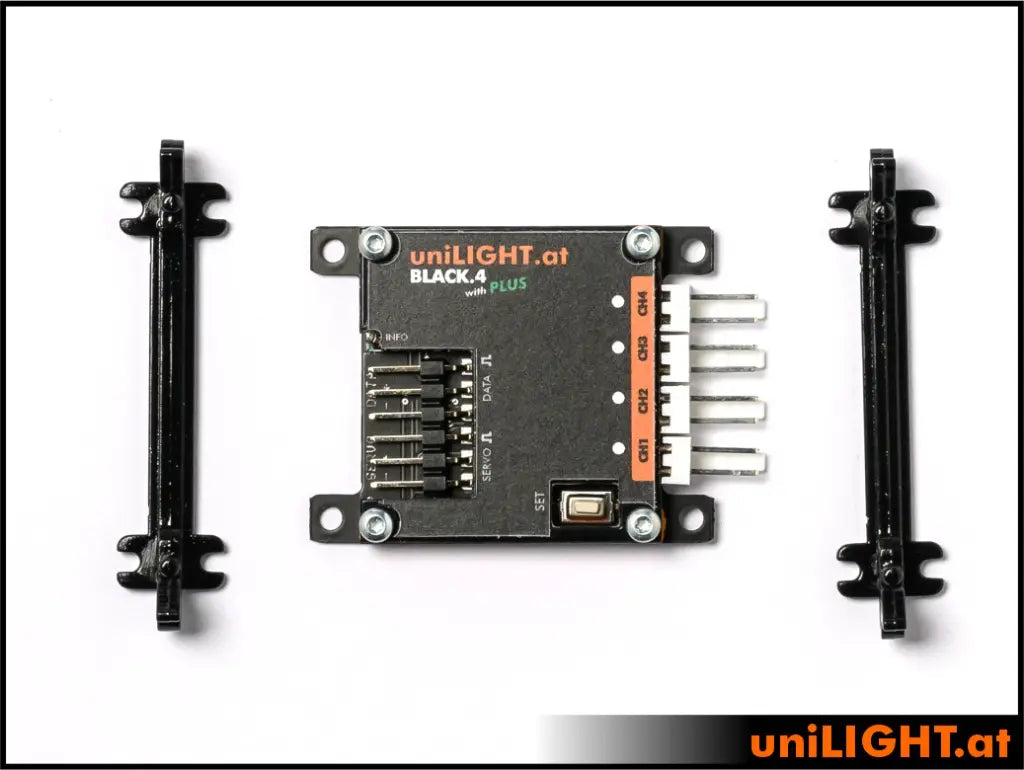

Includes 2 quick-snap mounting brackets and a manual.
