MODUL-B4PRO

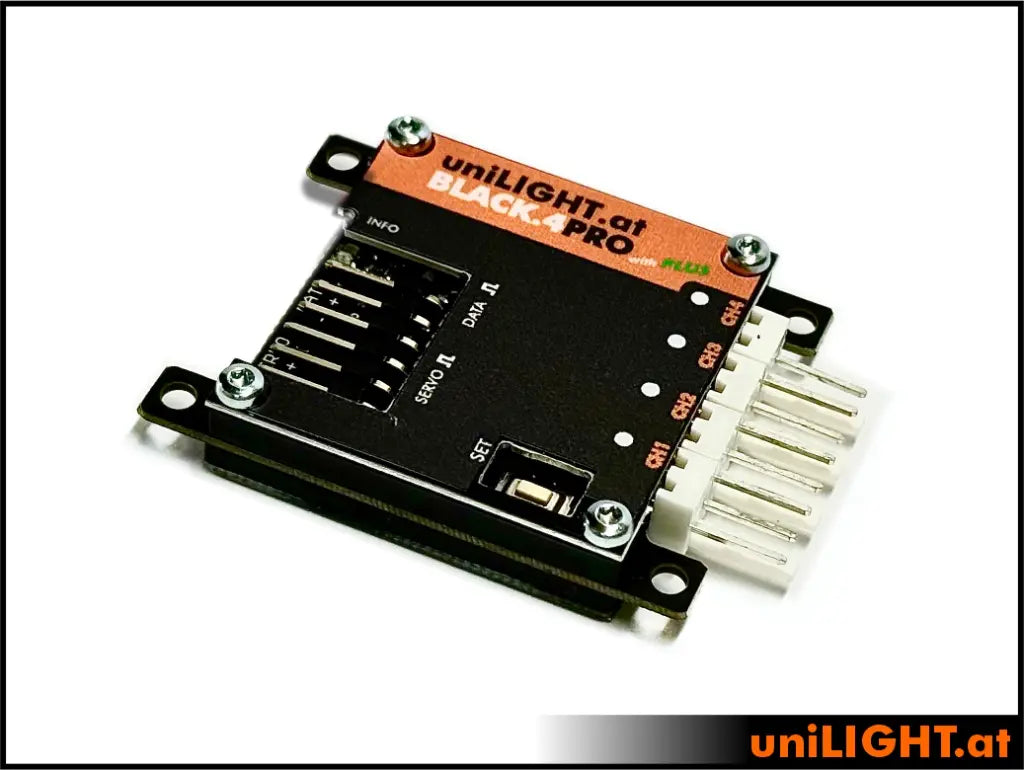

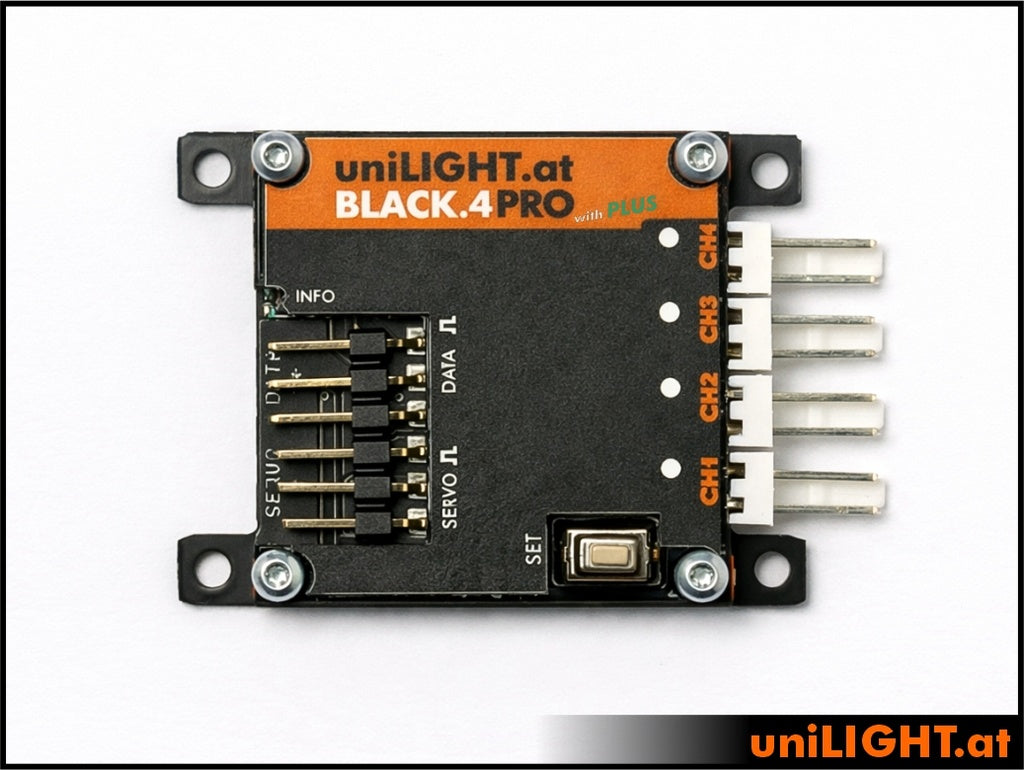

Extended light controller for professional application: BLACK.4 PRO
Extended PRO version of the most popular lighting controller. The BLACK.4PRO is the most universal controller for all small lighting applications, featuring enhanced software and a more robust design specifically developed for commercial UAV applications.
With the uniLIGHTPLUS interface and configuration via uniLIGHT.desk, numerous parameters can now be freely configured in addition to the well-known standard functions.
Its primary application remains the simple control of the most common lighting functions: strobes, navigation lights, beacon, and landing lights.
Highlights of the PLUS Serie
Configuration: classic operation and custom light patterns can be set
Software compatible with the uniLIGHTDESK
Dynamic: more beautiful, faster, and sharper defined lighting effects with 32bit depth
Safety: basic short-circuit protection of the outputs, undervoltage and temperature protection possible.
Master-Slave: no switch is necessary in the load circuit; it is only activated by the remote control.
Special functions: smooth transition switching, navigation+strobe sport function, power min/max limitation
Servo output: programmable output for control of the folding mechanism or other servos.
Control side receiver 3.6-9.6V
approx. 15g without cable
Dimensions 50x35x10mm
Light signals 4 channels with 6A to 14V (>6A pulse)
Total load up to 10A duration (>10A pulse)
Galvanically isolated system
Operation also possible without RC signal
14+2 classic variable speed lighting scheme
5+1 Custom
Soft switching process programmable
Navigation with flash function programmable
Short circuit protection
Deep discharge protection
Reverse polarity protection
Servo output for operating pop-up headlights, switches or valves
Includes 2 quick-snap mounting brackets and a manual
